SCHEMATIC OPPO A3S CPH 1853 HARDWARE SOLUSION

1. Jika mati total sebaiknya cek dulu jalur ON OFF pada HP tersebut Skeanya ada dibawah beserta keterangan warna pada jalur tersebut

ON OFF AND VOLUME OPPO A3S CPH 1853

CLIK DI GABAR BIAR JELAS JALURNYA

KYPD_PWR_N1

KEY_VOL_WON_N

PM_RESIN_N1

2. Cek jalur kamera seperti gambar skema dibawah ini

KETERANGAN JALUR OPPO A3S CPH 1853 HARDARE SOLUTION BACK CAMERA

MIPI_CSI0_LANEI_N

MIPI_CSI0_LANEI_P

MIPI_CSI0_CLK_N

MIPI_CSI0_CLK_P

MIPI_CS0_LANE3_N

MIPI_CSI0_LANE3_P

MIPI_CSI0_LANE2_P

MIPI_CSI0_LANE2_N

MIPI_CSI0_LANE0_P

MIPI_CSI0_LANE0_N

CAM_MCLK0

PWDN_VCM

MCAM_RST_N

FSYNC

MODULE_ID1

VREG_L22_2P8

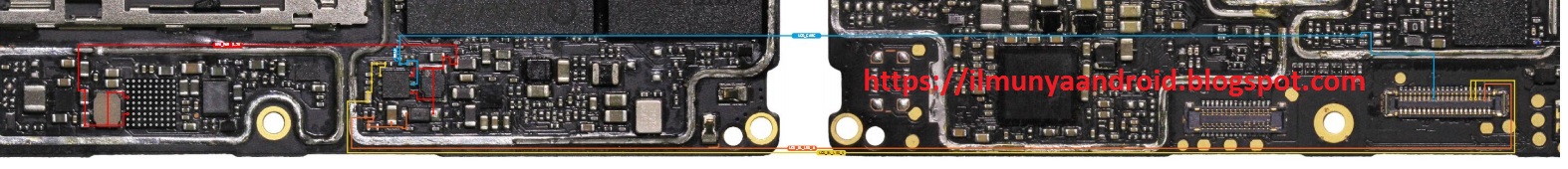

3. CEK JALUR LCD LIGHT OPPO A3S CPH 1853 DIBAWAH INI

KETERANGAN WARNA PADA JALUR OPPO A3S CPH 1853

SPESIFIKASI OPPO A3S CPH 1853 HARDWARE SOLUSION

NETWORK	Technology	GSM/HSPA/LTE
LAUNCH	Announced	2018
	Status	Released 2018
BODY	Dimensions	156.2x75.6x8.2mm (6.15x2.98x0.32in)
	Weight	168 g (5.93)
	Build	Glass front (Gorilla Glass3
	SIM	Dual SIM (Nano-SIM)
DISPLAY	Type	IPS LCD
	Size	6.2 inches, 95.9 cm
	Resolution	720 x 1520
	Protection	Corning Gorilla Glass 3
PLATFORM	OS	Android 8.1 (Oreo), Color OS 5.1
	Chipset	Qualcom SDM450 sNAPDRAGON 450 (14NM)
	CPU	Octa-core 1.8 GHz
	GPU	Adreno 506
MEMORY	Card slot	microSDXC (dedicated slot)
	Internal	16GB 2 GB RAM, 32GB 3GB RAM, 64GB 4GB RAM eMMC 5.1
MAIN CAMERA	Dual	13mp, f/2.2, AF
		2 MP, f/2.4
	Features	LED Flash, HDR, Panorama
	Video	1080p@30fps
SELFIE CAMERA	Single	8 MP, f/2 4
	Video	1080p@30fps
SOUND	Loudspeaker	Yes
	3.5mm jack	yes
COMMS	WLAN	Wi-fI 802.11 b/g/n Wi-Fi Direct, hotspot
	Bluetooth	4.2, A2DP, LE
	GPS	Yes, with A-GPS
	NFC	No
	Radio	FM radio
	USB	microUSB 2.0 USB On-The-Go
BATTERY	Type	Li-ion 4230mAh, non-removable
	Charging	Fast charging 20W
		VOOC
